Fanless wall-mounted Box PC Linux SCI-S4080

0 Reviews Write a review

Product codeSCI-S4080

Availability In Stock

Estimated delivery dates: Apr 20, 2025 - Apr 24, 2025

$336.20 – $422.30
You save

● Support intel Core i3, i5, i7 processors, integrated intel core graphics card
● Support 1 SO-DIMM DDR3 memory slot, 2.5-inch SATA hard disk, mSATA solid state drive
● 2 Gigabit Ethernet ports, support network wake-up, diskless boot, SIM built-in card slot, optional WIFI/Bluetooth/4G module
● 4 RS232 DB9 COM serial interfaces, COM2-3 support RS485 switching, HDMI+VGA dual display output
● BIOS supports Watchdog hardware reset, power-on and power-on function
● Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fin fanless heat dissipation structure, wide temperature (-10 ~ 60°C) stable operation
● Black/silver of the host is optional, supporting embedded, wall-mounted, and desktop installation

Buy 1 - 9 pieces

~~$410.00~~

$336.20

Total:

$410.00

Buy 10 - 49 pieces

~~$410.00~~

$319.80

Total:

Buy 50 - 99 pieces

~~$410.00~~

$307.50

Total:

Buy 100+ pieces

~~$410.00~~

$295.20

Total:

Total：

Processor

Memory

Hard disk

Color

Clear

Ask about product

TagsEmbedded IPC, microcomputer, Mini PC

Overview

The SCI-S4080 fanless embedded industrial computer is equipped with an Intel Core processor, supports DDR3 memory, and offers a variety of storage options including 2.5-inch SATA and mSATA. It is equipped with a rich array of interfaces, including LAN, COM RS232/485, USB, and HDMI+VGA dual display outputs. It is also expandable with WIFI/Bluetooth/4G modules and supports both Windows and Linux operating systems.

The whole-aluminum alloy shell has strong rigidity, and the aluminum fin design quickly dissipates the heat of the main unit. The internal structure without cables, fans, and the fully enclosed design effectively prevents dust from entering, ensuring stable operation of the main unit in a wide temperature range (-10 ~ 60℃). The embedded, wall-mounted, and desktop installation methods allow for quick and flexible installation, and it can be applied to fields such as industrial control, network communication, self-service terminals, security machine vision, mini servers, and smart cities.

Specs

system	C P U	intel Core i5-4300U / i7-4600U / i3-5005U
	Display chips	Intel Core Graphics Card
	Memory support	SO-DIMM DDR3
	Hard disk support	mSATA solid-state drive/2.5-inch SATA hard drive
	Network card chip	Realtek RTL8111 Gigabit Network Card
	Audio chips	Integration
	Power supply characteristics	nput AC 220V, DC 12V power adapter
	Wireless communications	Mini-PCIE slot (optional WIFI/Bluetooth/4G module)
	operating system	Supports Windows/Linux
	B I O S	Support for power-on startup, scheduled startup, support for network wake-up, and diskless booting
	Watchdog	The watchdog supports hardware reset (256 levels, 0 to 255 seconds)
interface	I/O interface	6 USB ports, 1 HDMI port, 1 VGA port, 2 LAN ports, 1 audio port, 4 COM ports, 1 DC port, 1 power port, 1 reset button, 1 power LED, 1 HDD LED
interface	Extended interfaces	1x SIM card slot, 1x Mini-PCIE

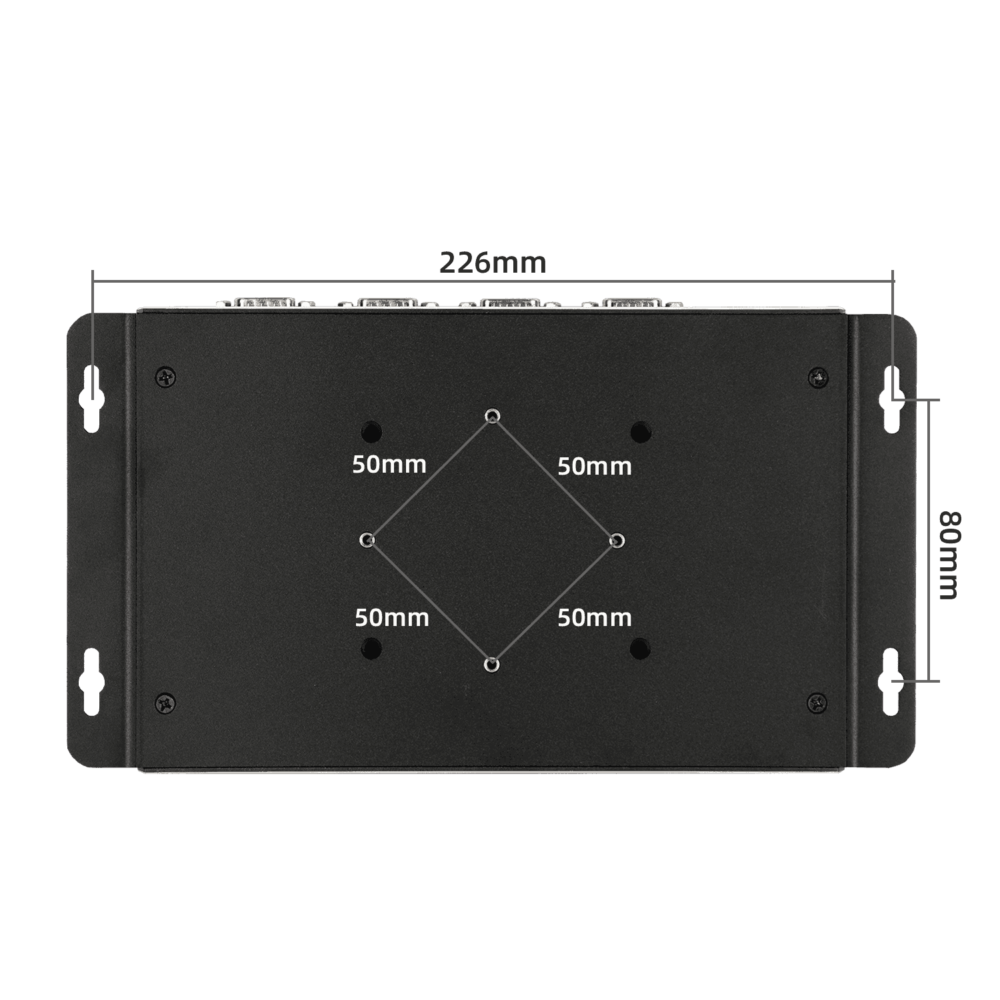

structure	Installation	Support embedded, wall-mounted, and desktop mounting
	Product dimensions	Host: 240×133×70mm, Packaging: 305×305×135mm
	Product weight	Net weight: 1.6 kg, Gross weight: 2.4 kg
	Material color	Aluminum alloy chassis, main unit color: black/silver
environment	Ambient temperature	Working environment: -10°C~60°C, transportation and storage environment: -20°C~70°C, relative humidity: 5%-95% (no condensation).
	Resistant to vibration shocks	Anti-vibration: 5~500Hz, 2Grms random vibration; Impact-resistant working condition: 10G@11ms
	Anti-interference static electricity	Anti-interference: EMI/EMC interference detection standard; ESD static electricity: contact discharge ± 8KV, air discharge ± 15KV
