SCI-S5000R6 intel i3 i5 i7 Fanless GPIO Box PC

0 Reviews Write a review

Product codeSCI-S5000R6

Availability In Stock

Estimated delivery dates: Apr 19, 2025 - Apr 23, 2025

$355.06 – $692.08
You save

● Supports intel Celeron/Core i3, i5, i7 processors, integrated intel core graphics card
● Supports 1 SO-DIMM DDR3/4 memory slot, 2.5-inch SATA hard drive, mSATA, M.2 solid-state drive
● 3 Gigabit network ports, support network wake-up, diskless boot, with SIM card slot, optional WIFI/Bluetooth/4G module
● 6 RS232 DB9 COM serial interfaces, all support RS485 switching, with isolation, HDMI+VGA dual display output
● 1 12pin Phoenix terminal (including four in and four out GPIO/switch/5V), power-on toggle switch, 9-36V wide voltage input
● Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fin fanless heat dissipation structure, stable operation in wide temperature range (-10 ~ 60℃)
● Supports Watchdog hardware reset, the host is available in black/silver color, and supports embedded, wall-mounted, and desktop installation.

Buy 1 - 9 pieces

~~$448.00~~

$367.36

Total:

$448.00

Buy 10 - 49 pieces

~~$448.00~~

$349.44

Total:

Buy 50 - 99 pieces

~~$448.00~~

$336.00

Total:

Buy 100+ pieces

~~$448.00~~

$322.56

Total:

Total：

Processor

Memory

Hard disk

Color

Clear

Ask about product

TagsEmbedded IPC, Mini PC

Overview

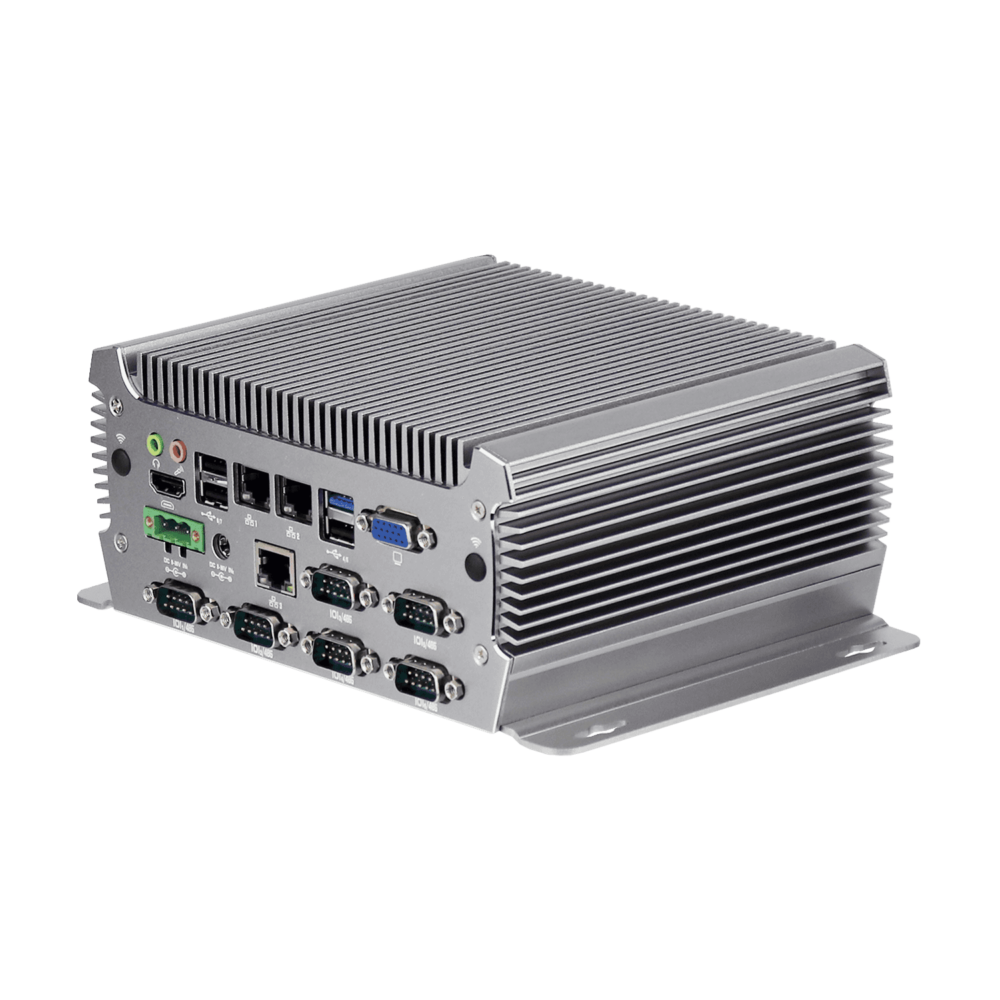

The SCI-S5000R6 fanless embedded industrial computer is equipped with an Intel Celeron/Core processor, supports DDR3/4 memory, and offers a variety of storage options including 2.5-inch SATA, mSATA, and M.2. It is equipped with abundant interfaces and buttons, including LAN, COM RS232/485, USB, GPIO, power-on startup button switch, SIM card slot, and HDMI+VGA dual display. It supports DC input voltage ranging from 9V to 36V and can be expanded with WIFI/Bluetooth/4G modules, compatible with Windows and Linux systems.

The whole-aluminum alloy shell has strong rigidity, and the aluminum fin design quickly dissipates the heat of the main unit. The internal structure without cables, fans, and the fully enclosed design effectively prevents dust from entering, ensuring stable operation of the main unit in a wide temperature range (-10 ~ 60℃). The embedded, wall-mounted, and desktop installation methods allow for quick and flexible installation, and are suitable for industrial control, soft router security, self-service terminals, security machine vision, and smart city applications.

Specs

system	C P U	intel J4125
	Display chips	intel Core graphics card
	Memory support	SO-DIMM DDR4
	Hard disk support	M.2 SSD/2.5"SATA HDD
	Network card chip	Realtek RLT8111 Gigabit LAN card
	Audio chips	integration
	Power supply characteristics	Input AC 220V, DC 12V power adapter
	Wireless communications	1*Mini-PCIE slot (optional WIFI/Bluetooth/4G module)
	operating system	Support Windows/Linux
	B I O S	supports power-on, timed boot, network wake-up, and diskless boot
	Watchdog	Watchdog supports hardware reset
interface	I/O interface	3×USB2.0、5×USB3.0、2×HDMI、2×LAN、1×Audio、1×Mic、4×COM、1×SIM Card slots、1×DC、1×Power、1×Reset、1×GHOST
interface	Extended interfaces	1×SIM external card slot, 1× Mini-PCIE
structure	Installation	Support embedded, wall-mounted, and desktop mounting
	Product dimensions	The main engine is 206×126×57mm, packing: 305×305×135mm
	Product weight	net weight:1.0kg，gross weight:1.7kg
	Material color	Aluminum alloy chassis, main unit color: black/silver
environment	Ambient temperature	Working environment: -10°C~60°C, transportation and storage environment: -20°C~70°C, relative humidity: 5%-95% (no condensation).
	Resistant to vibration shocks	Anti-vibration: 5~500Hz, 2Grms random vibration; Impact-resistant working condition: 10G@11ms
	Anti-interference static electricity	Anti-interference: EMI/EMC interference detection standard; ESD static electricity: contact discharge ± 8KV, air discharge ± 15KV
