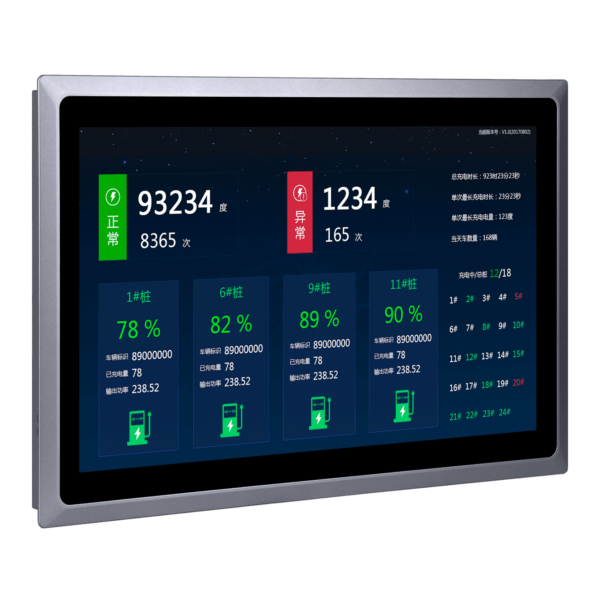

18.5 inch Aluminum fanless industrial panel PC K185WZ

18.5 inch Aluminum fanless industrial panel PC K185WZ - Image 2

18.5 inch Aluminum fanless industrial panel PC K185WZ - Image 3

18.5 inch Aluminum fanless industrial panel PC K185WZ - Image 4

18.5 inch Aluminum fanless industrial panel PC K185WZ - Image 5

18.5 inch Aluminum fanless industrial panel PC K185WZ - Image 6

18.5 inch Aluminum fanless industrial panel PC K185WZ - Image 7

18.5 inch Aluminum fanless industrial panel PC K185WZ - Image 8

18.5 inch Aluminum fanless industrial panel PC K185WZ - Image 9

-29%Feature

Video 360

18.5 inch Aluminum fanless industrial panel PC K185WZ

0 Reviews Write a review

Product codeSCP-K185WZ

Availability In Stock

Estimated delivery dates: May 6, 2025 - May 10, 2025

$743.75 – $892.50
You save

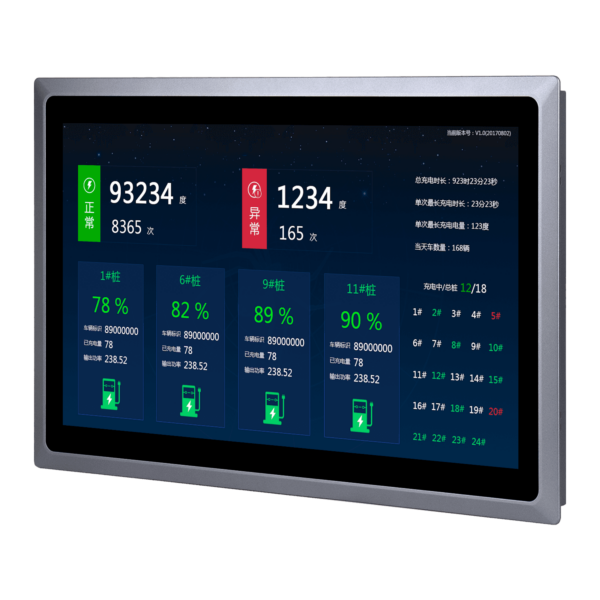

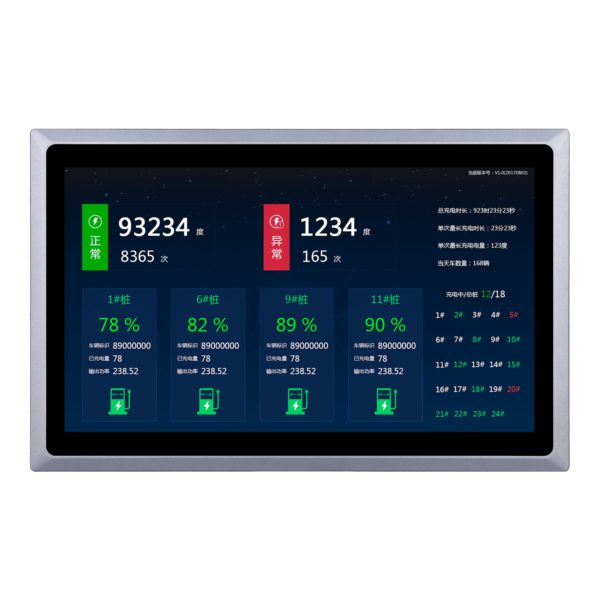

● Screen: 18.5″ LED screen, resolution 1920×1080, aluminum alloy front panel IP65 waterproof, optional capacitive touch screen or resistive touch screen
● Support intel Celeron/Core i3, i5, i7 CPU, DDR3/4 memory, mSATA, M.2, 2.5 inch SATA hard drive
● Support power-on and power-on, built-in double horns, high and low temperature resistance (-20°C to 60°C) uninterrupted and stable operation, with grounding terminals
● It can be expanded to 6 COM ports, supports HDMI or VGA video expansion display, and optional waterproof adhesive strip to better prevent moisture from penetrating into the cabinet
● 1 Gigabit LAN port (optional dual network port, WIFI Bluetooth or 4G module, optional addition of 9-36V wide voltage module)

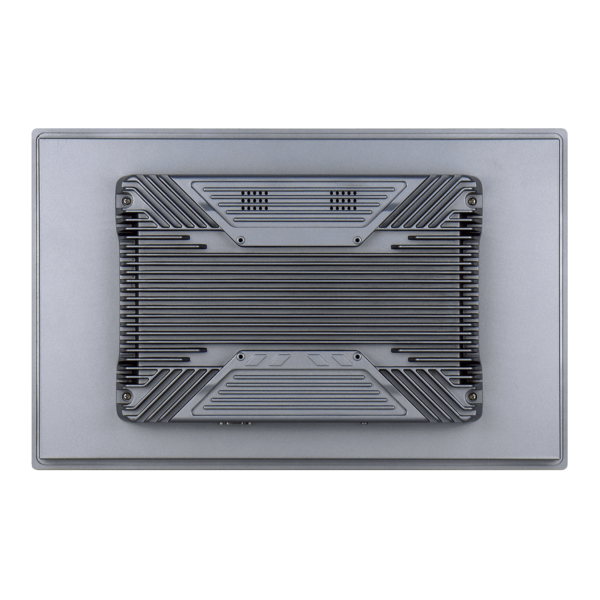

● The chassis is sturdy and beautiful, with aluminum fins fanless + built-in dual copper pipes for more efficient heat dissipation, and supports embedded/VESA bracket and other installation methods

Buy 1 - 9 pieces

~~$875.00~~

$743.75

Total:

$875.00

Buy 10 - 49 pieces

~~$875.00~~

$700.00

Total:

Buy 50 - 99 pieces

~~$875.00~~

$673.75

Total:

Buy 100+ pieces

~~$875.00~~

$647.50

Total:

Total：

ProcessorIntel Celeron J1900

Memory4G

Hard disk64G SSD

Clear

Ask about product

TagsIndustrial control all-in-one machine, Industrial Panel PC

Overview

SCD-A185WR/WZ/WG Resistive Touch Screen Industrial Display Adopts 18.5-inch 16:9 LED LCD screen, resolution 1920×1080, optional full-plane capacitive touch screen or resistive touch screen, with IP65 protection level, aluminum alloy front panel is beautiful and stylish, sturdy dustproof and anti-interference, can be used in harsh environments, wide temperature (-10 ~ 60°C) stable operation.

Resistance Touch screen Industrial display Provide rich display input interfaces: VGA+HDMI or VGA+DVI+HDMI, voltage input supports DC 12V and 2PIN phoenix terminals, provides safe grounding components to effectively protect the equipment, optional anti-vibration buffer waterproof adhesive strip to prevent moisture from penetrating into the box, supports embedded and VESA standard installation methods, and can quickly use a variety of universal brackets or support arms for convenient and flexible installation.

It can be applied to industrial control, power communication, medical education, visual logistics, smart city, self-service terminal and other fields.

Specs

system		Structure
C P U	intel Celeron J1900/J4125/J6412、Core i3/i5/i7	Front panel	Aluminum alloy: 4mm to thickness, 2mm to thin
Display the core	Intel core graphics	Ingress protection	The front panel is IP65 waterproof and dustproof
Memory support	DDR3/4 SO-DIMM	Chassis material	Sheet metal panel with ground terminals
Hard disk support	SSD solid state drives	Heat dissipation	Fanned or fanless cooling

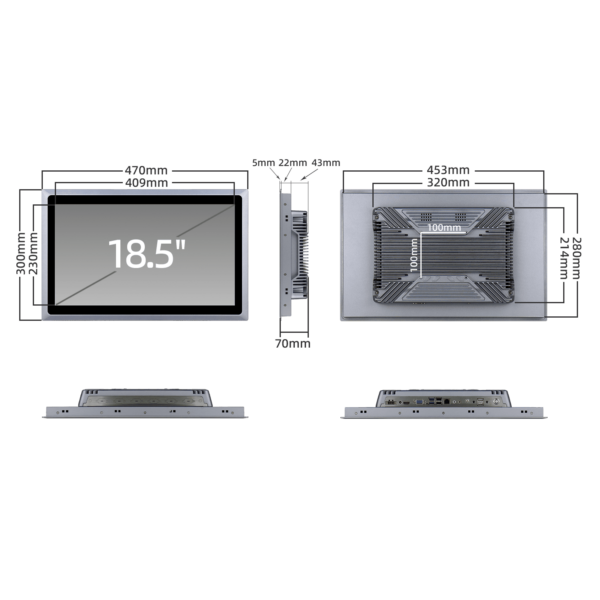

Network chips	Gigabit Ethernet	Installation	Embedded, VESA mount type (100×100mm)
Audio chips	Integrated audio chip (built-in dual speakers	Product dimensions	470×300×70mm
Wireless communications	1 MINI-PCIE SLOT (OPTIONAL WIFI MODULE).	Recessed cut-outs	453×280mm
Power supply characteristics	Input AC 220V, DC 12V power adapter	Package size	535×455×155mm
Power on and on	Yes (Disabled by default, need to be enabled in BIOS)	Product color	Silver (grayish tint)
operating system	SupportWi ndows/Linux	Product weight	Net weight 6.3kg, gross weight 7.7kg
Display		Environment
Screen type	18.5"LED, 169 widescreen, 1366×768/1920×1080	Interference resistance	EMI/EMC interference detection standards
Color contrast	16.7M，1000:1	ESD static electricity	The contact discharge ± 8KV, the air discharge ± 15KV
Screen brightness	300~500cd/㎡	Vibration resistance	5~500Hz, 2Grms random vibration
Viewing angle	Horizontal 160° / Vertical 150°	Shock resistant	Working Status: 10G@11ms, Non-Working Status: 20G@11ms
Viewable area	409×230mm	Working environment	-10℃～50℃
Touch the screen	Optional full-plane capacitive touch screen or resistive touch screen	Storage environment	-20℃～60℃
Surface hardness	Hardness≧ 7H or ≧4H	relative humidity	10%~90% (no condensation)
I/O interface

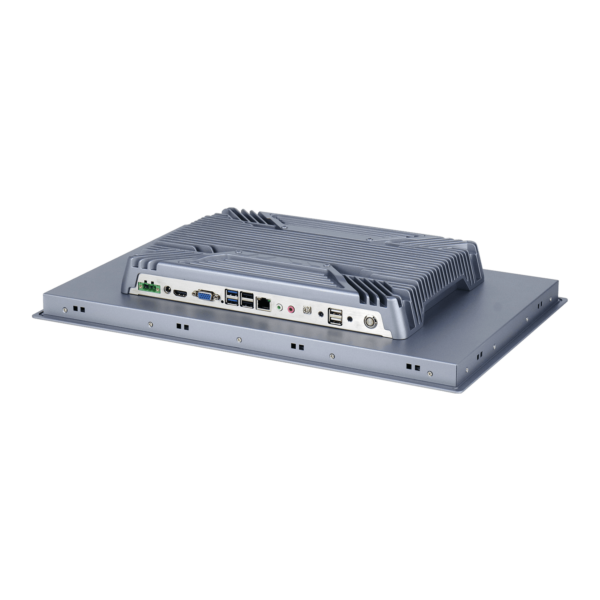

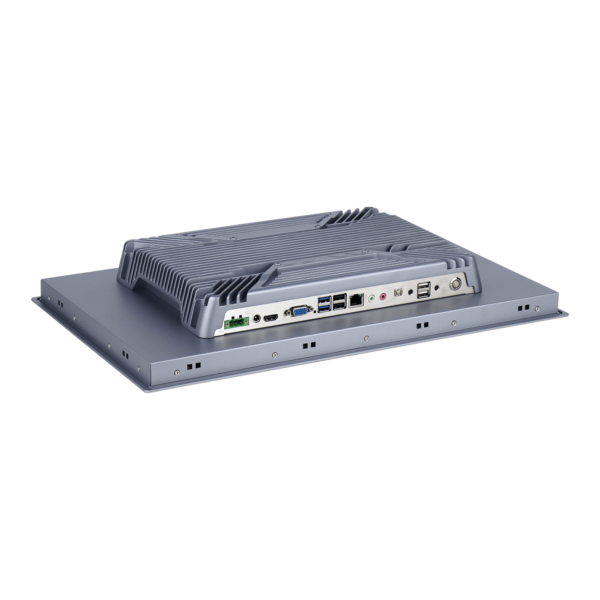

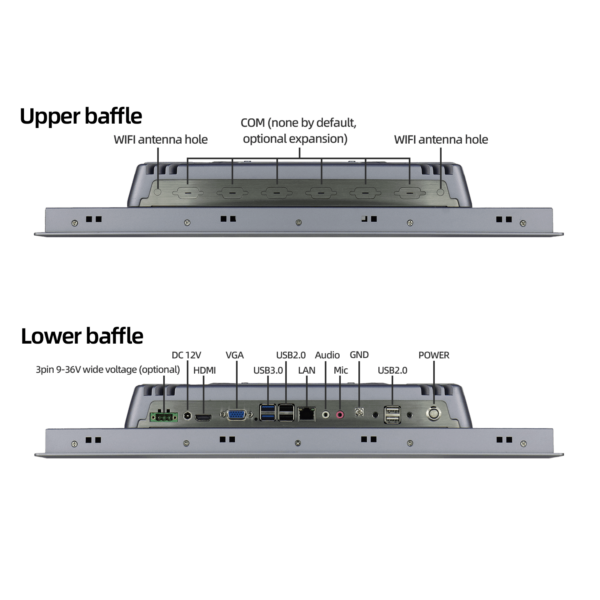

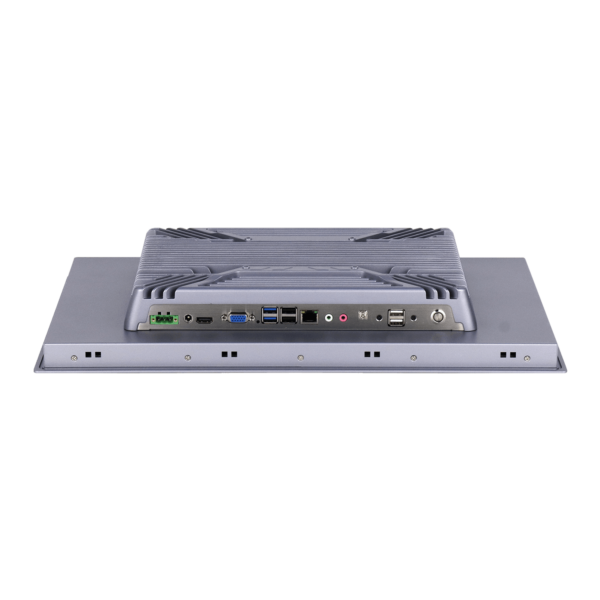

6×USB、1×VGA、1×HDMI、1×LAN、1×Audio、1×Mic、6×COM、1×Power、1×DC 12V、1×2pin、1×GND
