Core i5 i7 Embedded Mini IPC SCI-S5010C10

0 Reviews Write a review

Product codeSCI-S5010C10

Availability In Stock

Estimated delivery dates: May 16, 2025 - May 20, 2025

~~$458.00~~ $375.56
You save $82.44

● Support intel Celeron/Core i3, i5, i7 processors, integrated intel core graphics card
● Support 1 SO-DIMM DDR3/4 memory slot, 2.5-inch SATA hard disk, mSATA, M.2 solid state drive
● 2 Gigabit Ethernet ports, support Wake-on-LAN, diskless boot, external SIM card slot, optional WIFI/Bluetooth/4G module
● 10 RS232 DB9 COM serial interfaces, COM5-10 support RS485 switching, HDMI+VGA+DVI triple display
● 1 x 12pin phoenix terminal (including four input and four out GPIO/switch/5V), power-on toggle switch, 9-36V wide voltage input
● Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fin fanless heat dissipation structure, wide temperature (-10 ~ 60°C) stable operation
● Support Watchdog hardware reset, host black/silver optional, support embedded, wall-mounted, desktop installation

Buy 1 - 9 pieces

~~$458.00~~

$375.56

Total:

~~$458.00~~

$375.56

Buy 10 - 49 pieces

~~$458.00~~

$357.24

Total:

~~$458.00~~

$375.56

Buy 50 - 99 pieces

~~$458.00~~

$343.50

Total:

~~$458.00~~

$375.56

Buy 100+ pieces

~~$458.00~~

$329.76

Total:

~~$458.00~~

$375.56

1 × Core i5 i7 Embedded Mini IPC SCI-S5010C10

~~$458.00~~ $375.56

Total：

$375.56

ProcessorIntel Celeron J1900

Memory4G

Hard disk64G SSD

ColorSilver

Clear

Ask about product

TagsEmbedded IPC, Industrial control computer, microcomputer

Overview

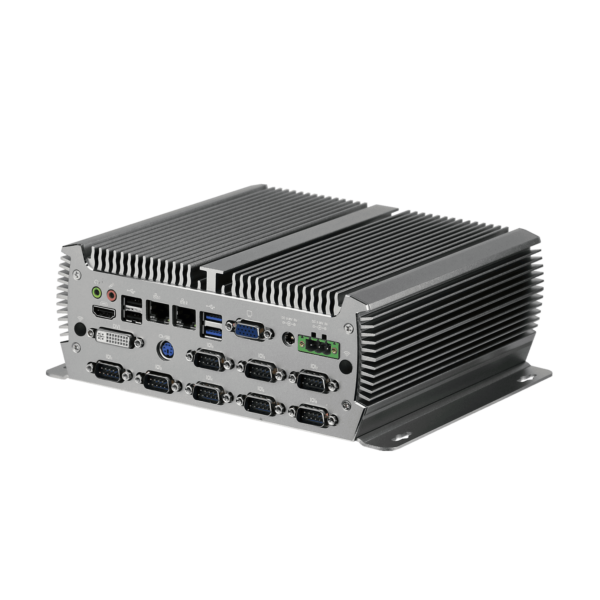

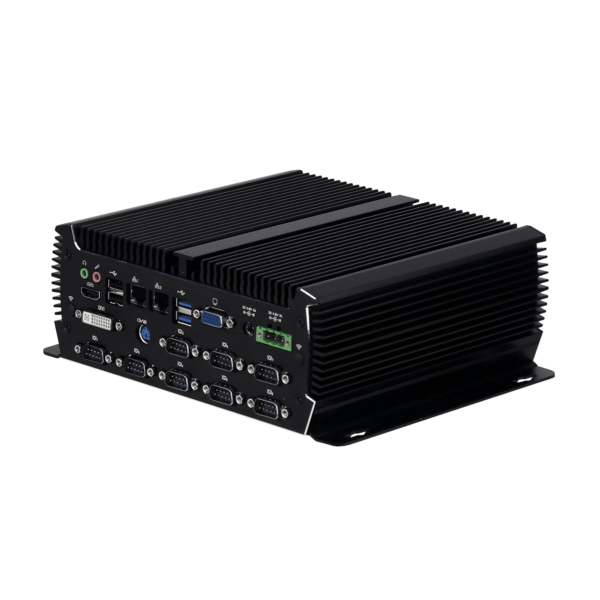

The SCI-S5010C10 fanless embedded industrial computer is equipped with an Intel Celeron/Core processor, supports DDR3/4 memory, and offers a variety of storage options including 2.5-inch SATA, mSATA, and M.2. It is equipped with abundant interfaces and buttons, including LAN, COM RS232/485, USB, GPIO, power-on startup button switch, SIM card slot, and HDMI+VGA+DVI triple display. It supports DC input voltage ranging from 9V to 36V and can be expanded with WIFI/Bluetooth/4G modules, compatible with Windows and Linux systems.

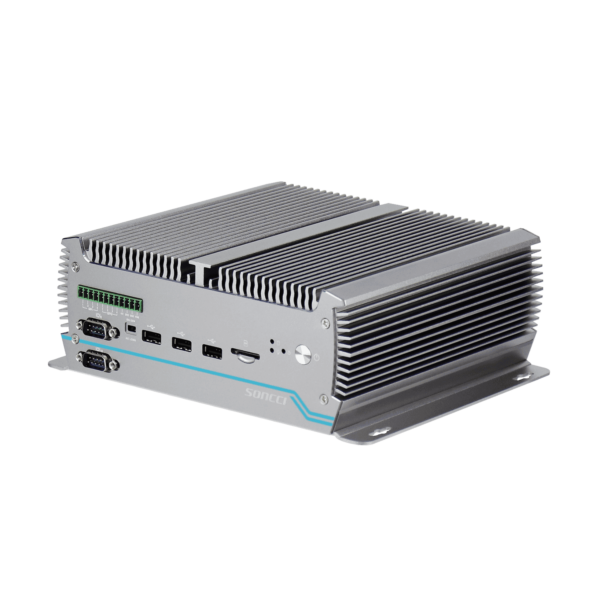

The whole-aluminum alloy shell has strong rigidity, and the aluminum fin design quickly dissipates the heat of the main unit. The internal structure without cables, fans, and a fully enclosed design prevents dust from entering, ensuring stable operation of the main unit in a wide temperature range (-10 ~ 60℃). The flexible installation methods include embedded, wall-mounted, and desktop installation, and it can be used in fields such as industrial control, transportation, self-service terminals, security machine vision, mini servers, and smart cities.

Specs

system	C P U	intel J1900 / 3865U / i3-5020U / i5-4310U / i5-6300U / i7-6650U / i5-7200U / i5-7360U / i7-7500U / i3-8145U / i5-8265U
	Display chips	Intel Core Graphics Card
	Memory support	SO-DIMM DDR3/DDR4
	Hard disk support	mSATA solid-state drive/2.5-inch SATA hard drive
	Network card chip	Intel i211 Gigabit Network Card
	Audio chips	Integration
	Power supply characteristics	9 to 36V wide voltage range, with an external power adapter or an open power supply
	Wireless communications	Built-in Mini-PCIe slot (optional Wi-Fi/Bluetooth/4G module)
	operating system	Supports Windows/Linux
	B I O S	Support for power-on startup, scheduled startup, support for network wake-up, and diskless booting
	Watchdog	The watchdog supports hardware reset (256 levels, 0 to 255 seconds)

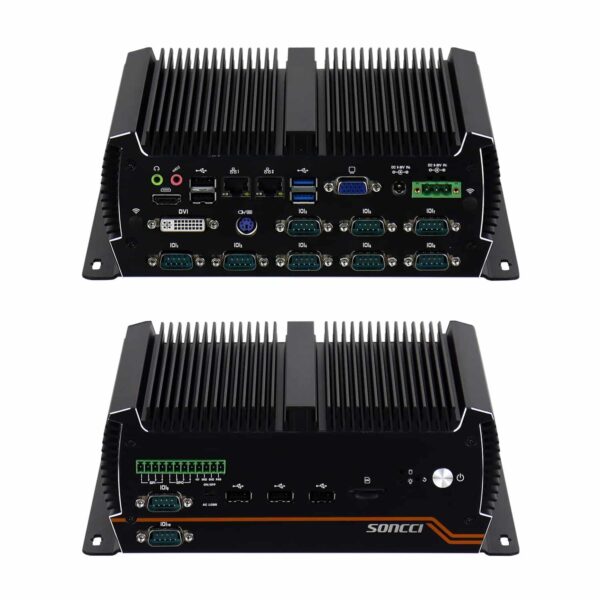

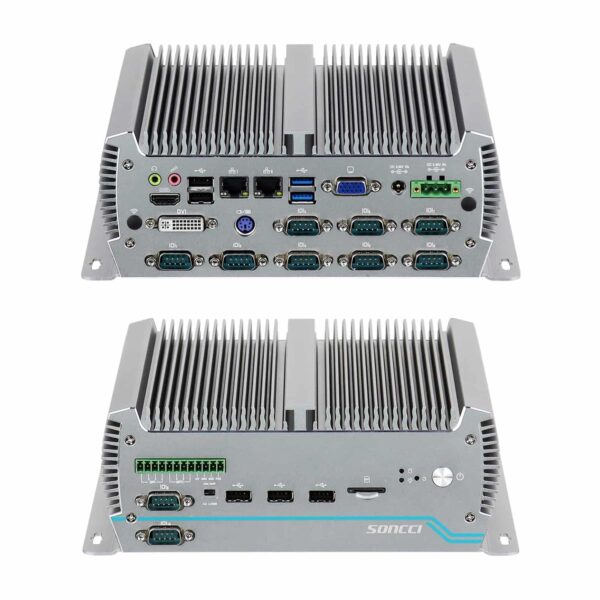

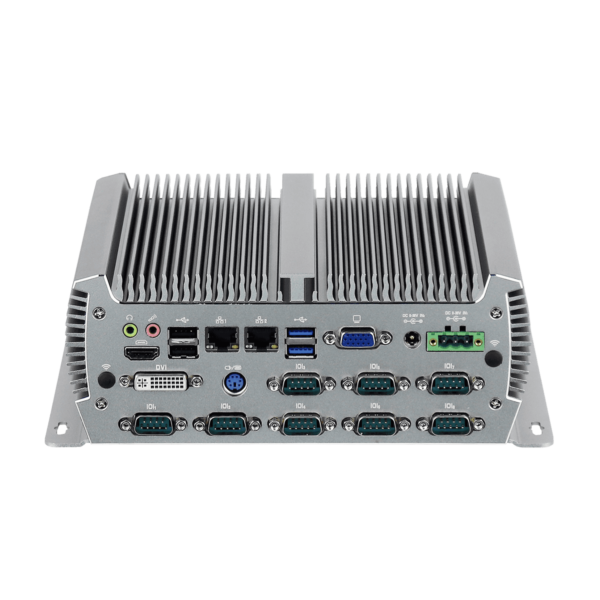

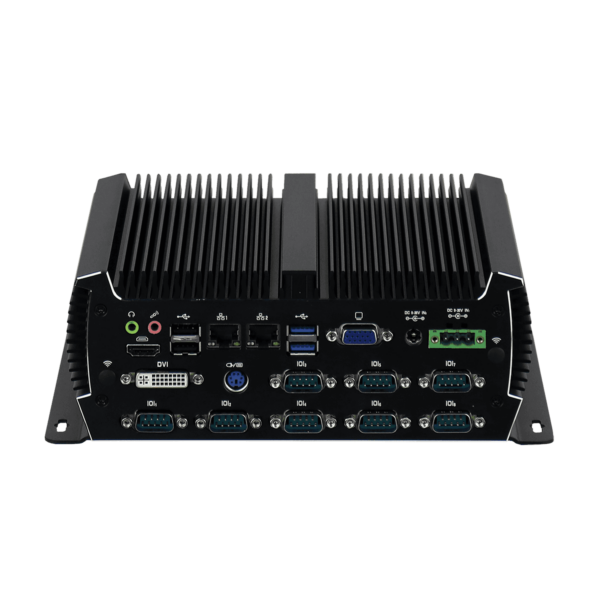

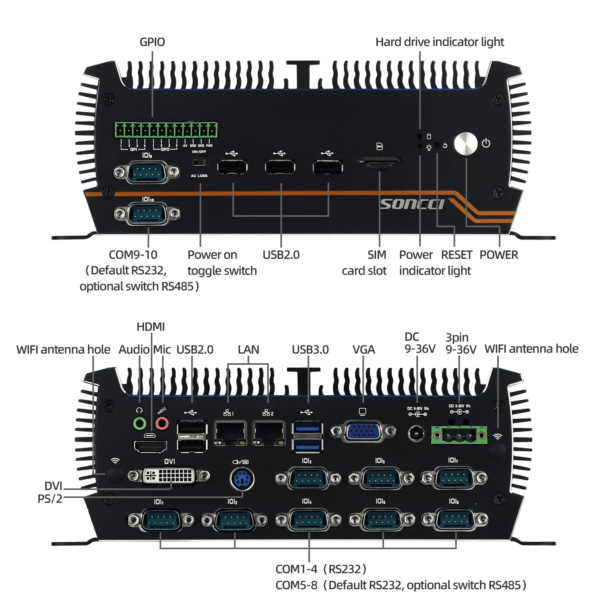

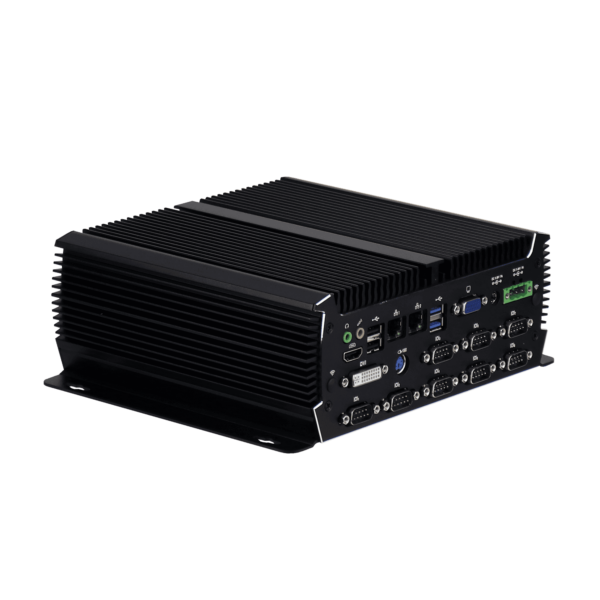

interface	I/O interface	7x USB, 1x HDMI, 1x VGA, 1x DVI, 2x LAN, 1x Audio, 1x Mic, 10x COM, 1x PS/2, 1x AC Loss, 1x GPIO, 1x DC 9-36V, 1x 3-pin 9-36V, 1x Power, 1x Reset, 1x Power LED, 1x HDD LED
interface	Extended interfaces	1x SIM card slot, 1x Mini-PCIE

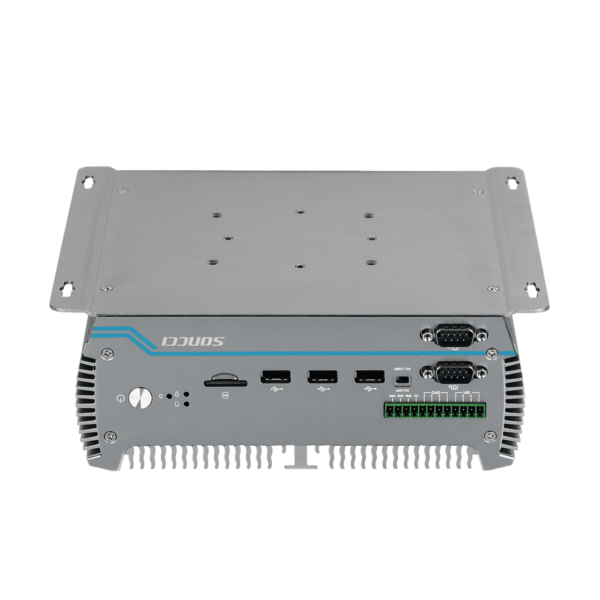

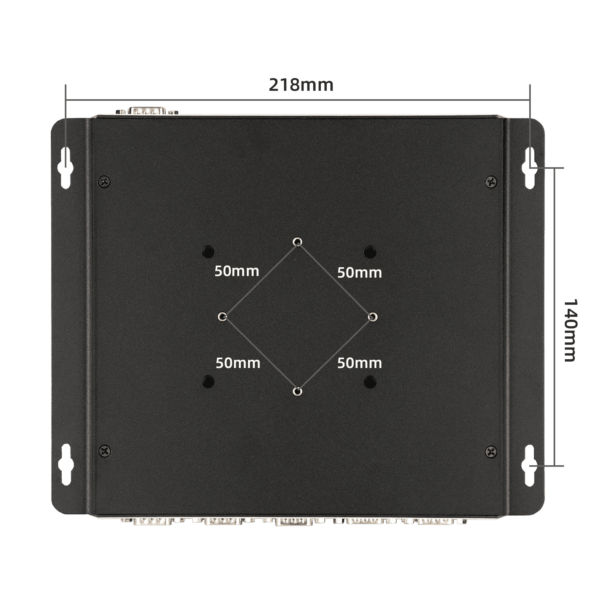

structure	Installation	Support embedded, wall-mounted, and desktop mounting

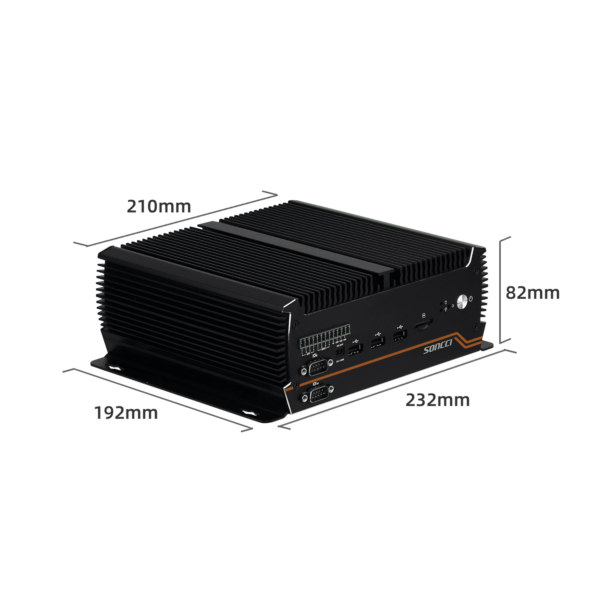

	Product dimensions	Host: 232×192×82mm, Packaging: 305×305×135mm
	Product weight	Net weight: 2.5 kg, Gross weight: 3.3 kg

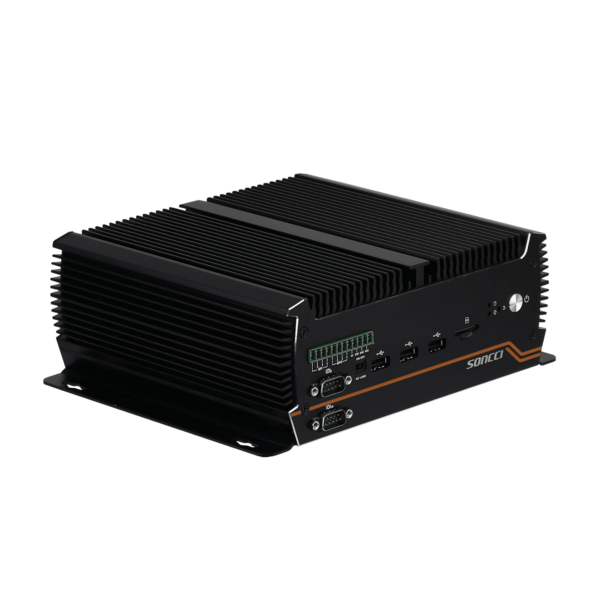

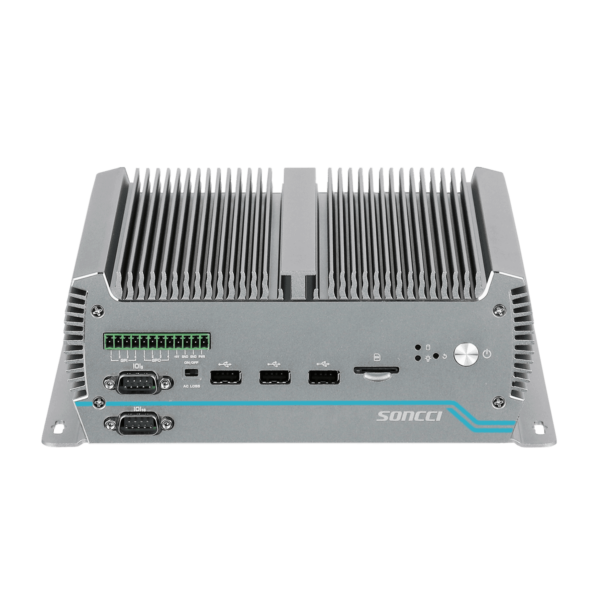

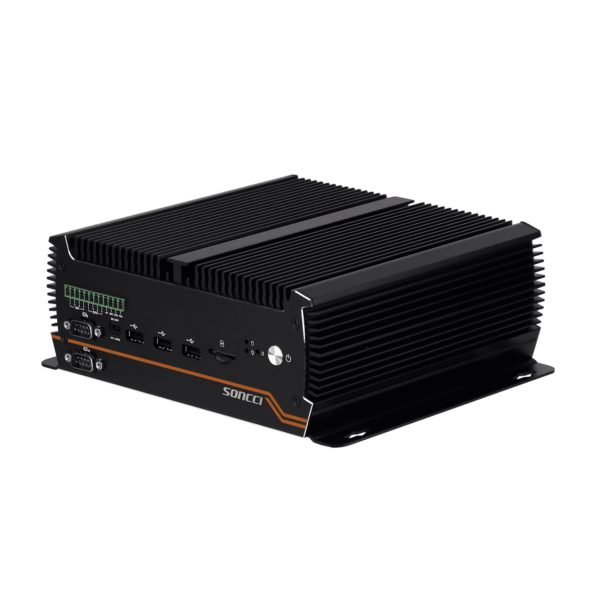

	Material color	Aluminum alloy chassis, main unit color: black/silver
environment	Ambient temperature	Working environment: -10°C~60°C, transportation and storage environment: -20°C~70°C, relative humidity: 5%-95% (no condensation).
	Resistant to vibration shocks	Anti-vibration: 5~500Hz, 2Grms random vibration; Impact-resistant working condition: 10G@11ms
	Anti-interference static electricity	Anti-interference: EMI/EMC interference detection standard; ESD static electricity: contact discharge ± 8KV, air discharge ± 15KV
