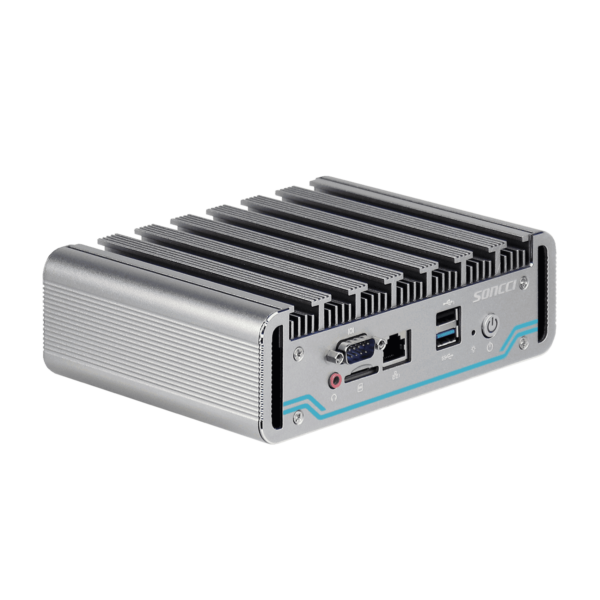

J4125 fanless compact mini IPC SCI-S4010

J4125 fanless compact mini IPC SCI-S4010 - Image 2

J4125 fanless compact mini IPC SCI-S4010 - Image 3

J4125 fanless compact mini IPC SCI-S4010 - Image 4

J4125 fanless compact mini IPC SCI-S4010 - Image 5

J4125 fanless compact mini IPC SCI-S4010 - Image 6

J4125 fanless compact mini IPC SCI-S4010 - Image 7

J4125 fanless compact mini IPC SCI-S4010 - Image 8

J4125 fanless compact mini IPC SCI-S4010 - Image 9

J4125 fanless compact mini IPC SCI-S4010 - Image 10

J4125 fanless compact mini IPC SCI-S4010 - Image 11

J4125 fanless compact mini IPC SCI-S4010 - Image 12

J4125 fanless compact mini IPC SCI-S4010 - Image 13

-29%

Video 360

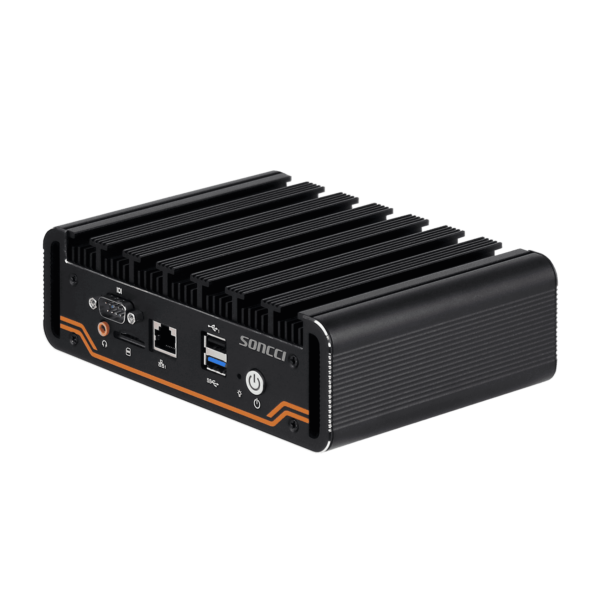

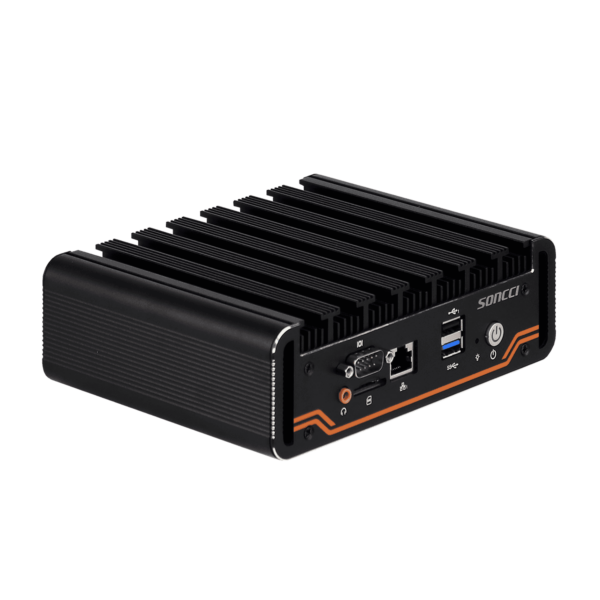

J4125 fanless compact mini IPC SCI-S4010

0 Reviews Write a review

Product codeSCI-S4010

Availability In Stock

Estimated delivery dates: May 9, 2025 - May 13, 2025

You save

-18%

● Support intel Celeron processor, integrated intel core GRAPHICS card
● Support 1 SO-DIMM DDR4 memory slot, mSATA solid state drive
● 1 GIGABIT network port, support wake-on-network, diskless startup, external SIM card slot, optional WIFI/Bluetooth/4G module
● 1 RS232 DB9 COM serial port, 1 Console RJ-45 serial port, HDMI+VGA dual display output
● The BIOS supports Watchdog hardware reset, power-on and boot function
● Compact and sturdy fully sealed aluminum alloy chassis and large-area aluminum fins fanless cooling structure, stable operation at wide temperature (-10~60℃)
● Mini is only the size of the palm of your hand, the host is available in black/silver, and supports embedded, wall-mounted, and desktop installation.

Buy 1 - 9 pieces

~~$419.00~~

$343.58

Total:

~~$419.00~~

$343.58

Buy 10 - 49 pieces

~~$419.00~~

$326.82

Total:

~~$419.00~~

$343.58

Buy 50 - 99 pieces

~~$419.00~~

$314.25

Total:

~~$419.00~~

$343.58

Buy 100+ pieces

~~$419.00~~

$301.68

Total:

~~$419.00~~

$343.58

1 × J4125 fanless compact mini IPC SCI-S4010

~~$419.00~~ $343.58

Total：

$343.58

ProcessorIntel Celeron J4125

Intel Celeron J4125

Memory4G

Hard disk128G SSD

128G SSD

256G SSD

512G SSD

ColorBlack

Clear

~~$419.00~~ $343.58
You save $75.42

Ask about product

TagsEmbedded IPC, microcomputer, Mini PC

Overview

The SCI-S4010 fanless embedded computer is powered by an intel Celeron processor, supports DDR4 memory, and offers a variety of options for mSATA storage. It is equipped with rich interfaces, including LAN, COM RS232, USB, SIM card slot, HDMI+VGA dual display, etc., expandable WIFI/Bluetooth/4G module, supporting Windows and Linux systems. The aluminum alloy shell of the whole machine has strong properties, the aluminum fin design quickly dissipates the heat of the host, and the fanless and fully enclosed structure effectively prevent dust from entering, so as to ensure the stable operation of the host in a wide temperature (-10 ~ 60°C) working environment. Embedded, wall-mounted, and desktop installation methods are fast and flexible for installation, which can be applied to industrial control, logistics and warehousing, self-service terminals, security machine vision, mini servers, smart cities and other fields.

Specs

system	C P U	intel J4125
	Display chips	intel Core graphics card
	Memory support	SO-DIMM DDR4
	Hard disk support	mSATA SSD
	Network card chip	Realtek RTL8111 Gigabit LAN card
	Audio chips	integration
	Power supply characteristics	Input AC 220V, DC 12V power adapter
	Wireless communications	1*Mini-PCIE slot (optional WIFI/Bluetooth/4G module)
	operating system	Support Windows/Linux
	B I O S	supports power-on, timed boot, network wake-up, and diskless boot
	Watchdog	Watchdog supports hardware reset (256 levels, 0~255 seconds)

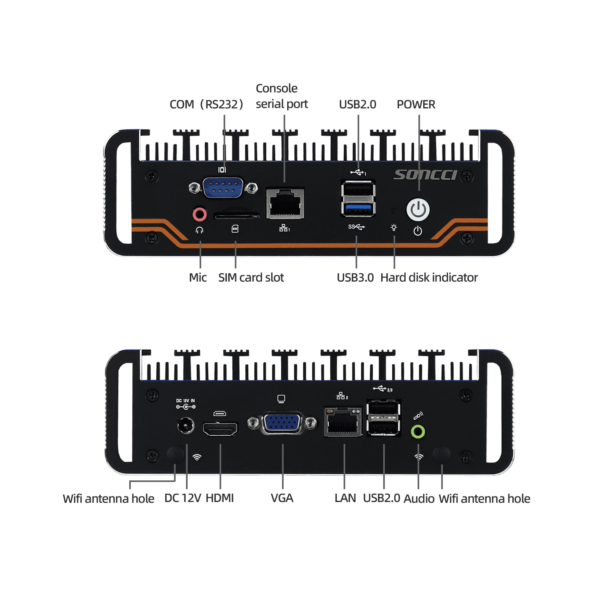

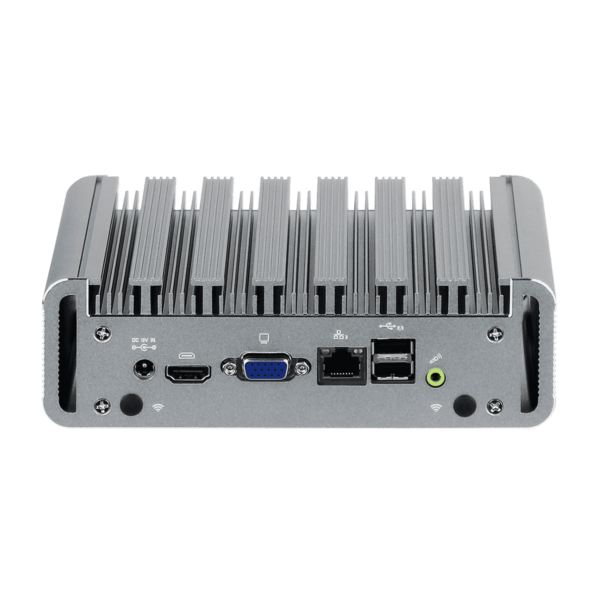

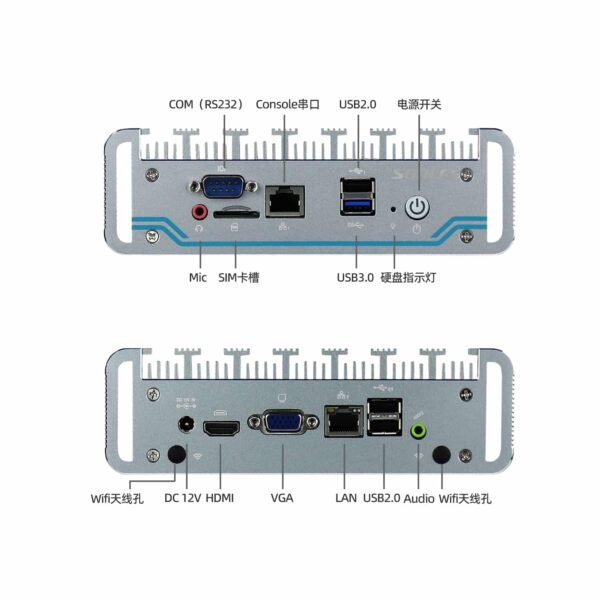

interface	I/O interface	4×USB、1×HDMI、1×VGA、1×LAN、1×Audio、1×Mic、1×COM DB9、1×SIM Card slots、1×Console RJ-45、1×DC、1×Power
interface	Extended interfaces	1×SIM external card slot, 1× Mini-PCIE
structure	Installation	Support embedded, wall-mounted, and desktop mounting

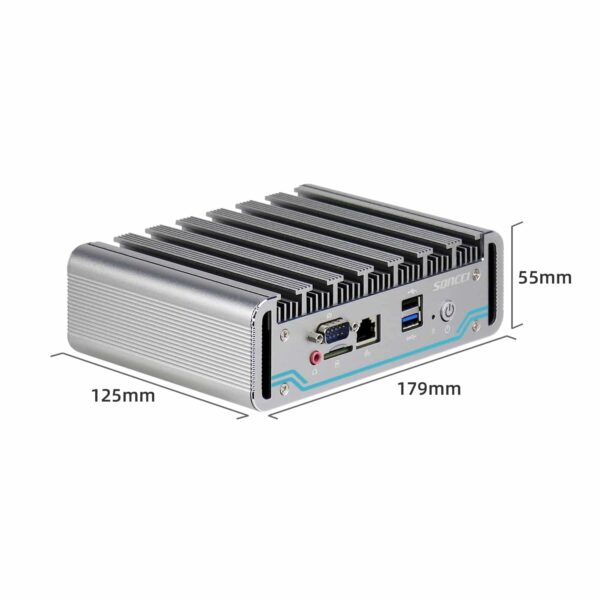

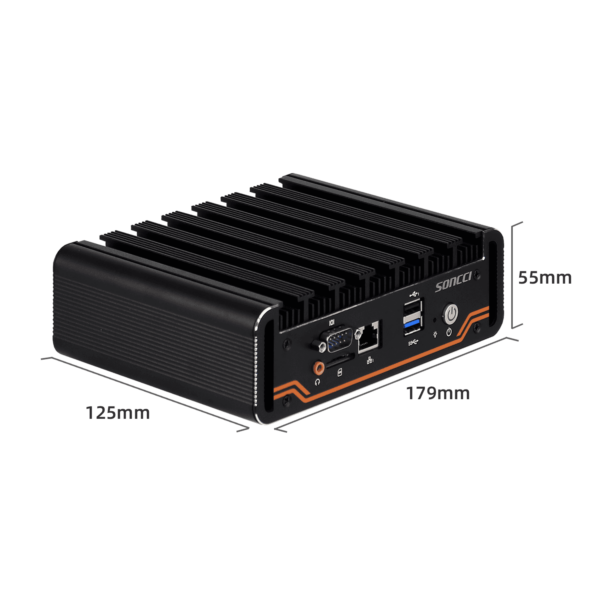

	Product dimensions	The main engine is179×125×55mm, packing: 205×175×120mm
	Product weight	net weight:1.2kg，gross weight:1.9kg

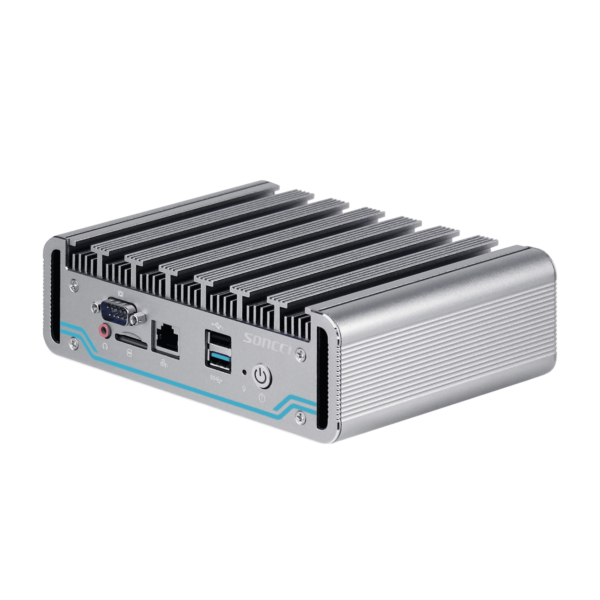

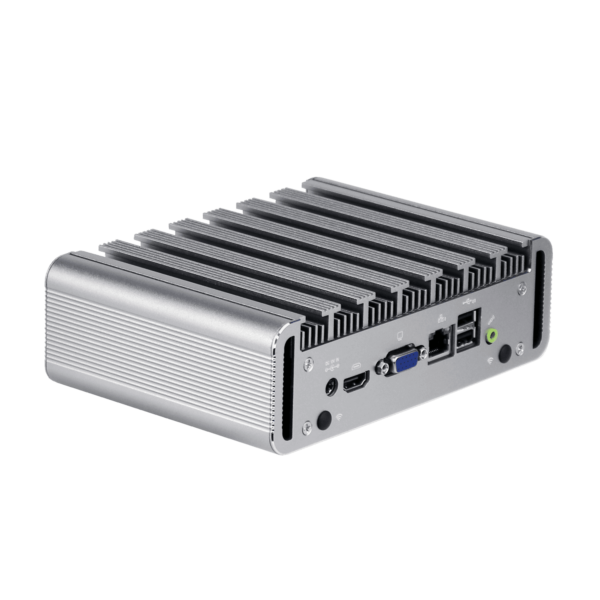

	Material color	Aluminum alloy chassis, color: black/silver
environment	Ambient temperature	Working environment: -10°C~60°C, transportation and storage environment: -20°C~70°C, relative humidity: 5%-95% (no condensation).
	Resistant to vibration shocks	Anti-vibration: 5~500Hz, 2Grms random vibration; Impact-resistant working condition: 10G@11ms
	Anti-interference static electricity	Anti-interference: EMI/EMC interference detection standard; ESD static electricity: contact discharge ± 8KV, air discharge ± 15KV
